RPM220-10/TH

Used for transient overvoltage protection of outdoor and commercial LED lighting fixtures with operating voltage of AC277V. This product has good protection effect, limit low voltage, easy installation, with thermal tripping function.

  1. System voltage: AC220V
  2. Maximum discharge current Imax: 10KA
  3. Lightning strike voltage: 10KV(1.2/50us)
  4. Installation Way: Install in series
  5. Protection grade: IP65
main features

The RPM220-10/TH Street lamp surge protection device components are used for transient overvoltage protection of outdoor and commercial LED lighting fixtures with operating voltage of AC277V. This product has good protection effect, limit low voltage, easy installation, with thermal tripping function.


01. Long life, low residual voltages, high reliability protection, with thermal tripping.


02. The operation voltage is appropriate, and the protection circuit is stable.


03. High performance heat shrink sleeve pipe sealing structure.


04. Compact structure, easy installation, simple maintenance.


05. New protection scheme, with thermal tripping function.

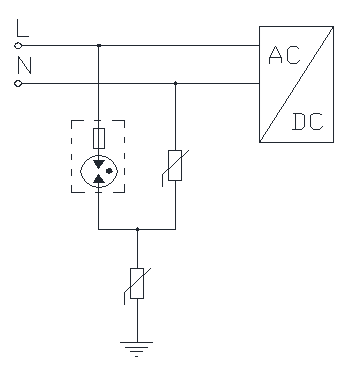

Protective principle

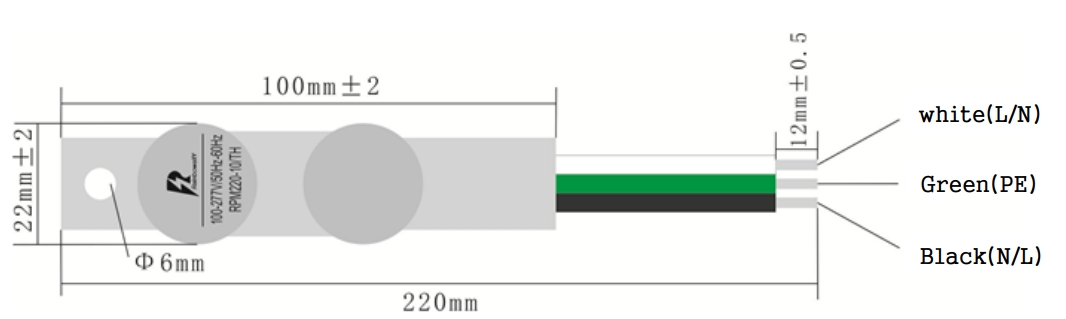

Dimension


                                                                                                                          5-1

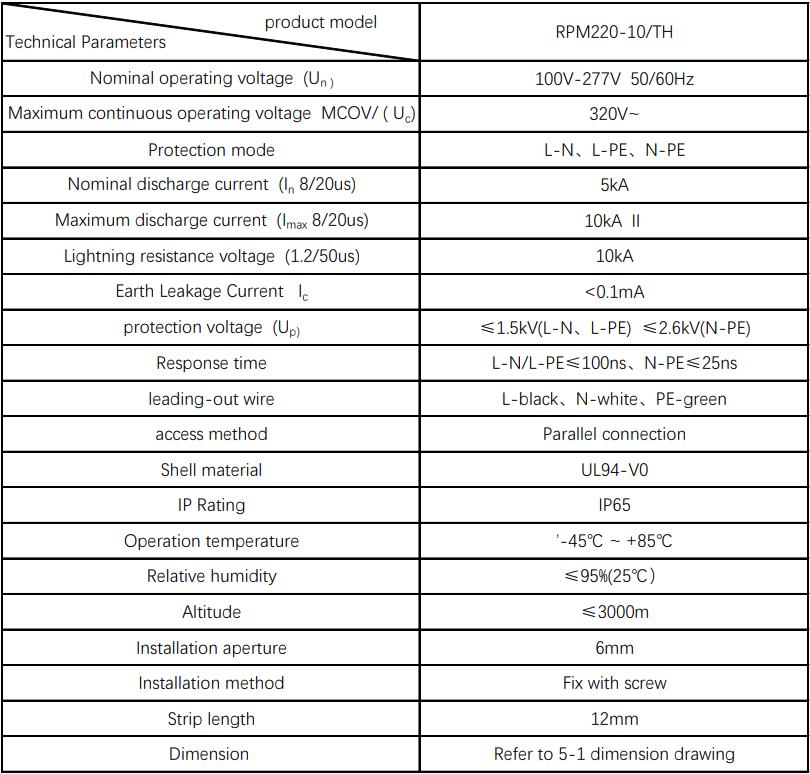

technical parameter
