RPM220-10/T

Used for transient overvoltage protection of outdoor and commercial LED lighting fixtures with operating voltage of AC220V. This product has good protection effect, limit low voltage, easy installation, with thermal tripping function.

  1. System voltage: AC220V
  2. Maximum discharge current Imax: 10KA
  3. Lightning strike voltage: 10KV(1.2/50us)
  4. Installation Way: Install in series
  5. Protection grade: IP65
  6. Protection Mode: Symmetric protection 、 Full protection
  7. Installation Way: In series 、 Parallel
main features

The RPM220-10/T street lamp surge protection device components are used for transient overvoltage protection of outdoor and commercial LED lighting fixtures with operating voltage of AC220V. This product has good protection effect, limit low voltage, easy installation, with thermal tripping function.


01. Long life, low residual pressure, high reliability protection, with thermal tripping.


02. The operation voltage is appropriate, and the protection circuit is stable.


03. Integrated fully sealed structure.


04. Built-in over-temperature and over-current protection, no continuous flow, high reliability and safety;


05. Compact structure, easy installation, simple maintenance.

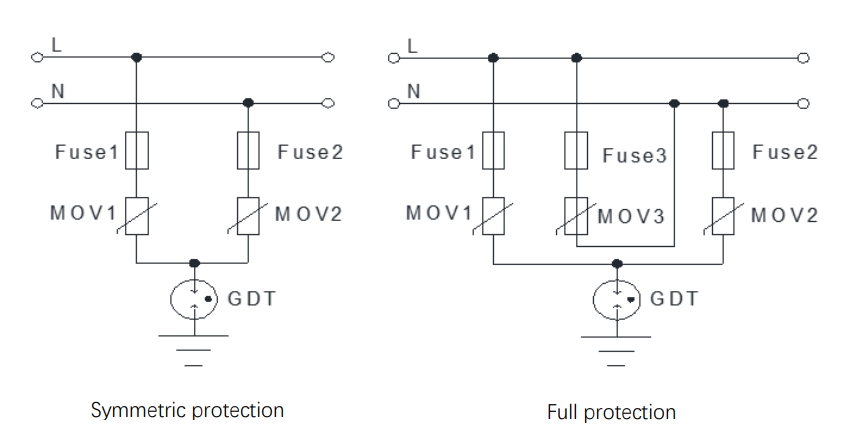

Protective principle

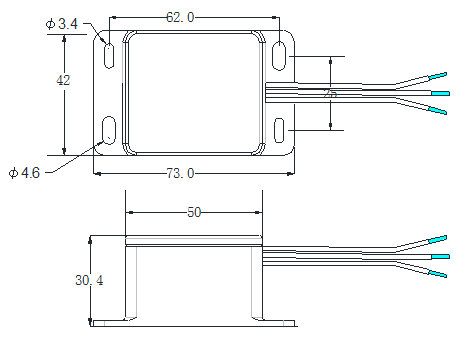

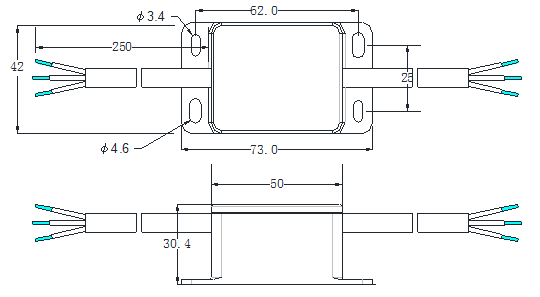

Dimension

image.png   image.png

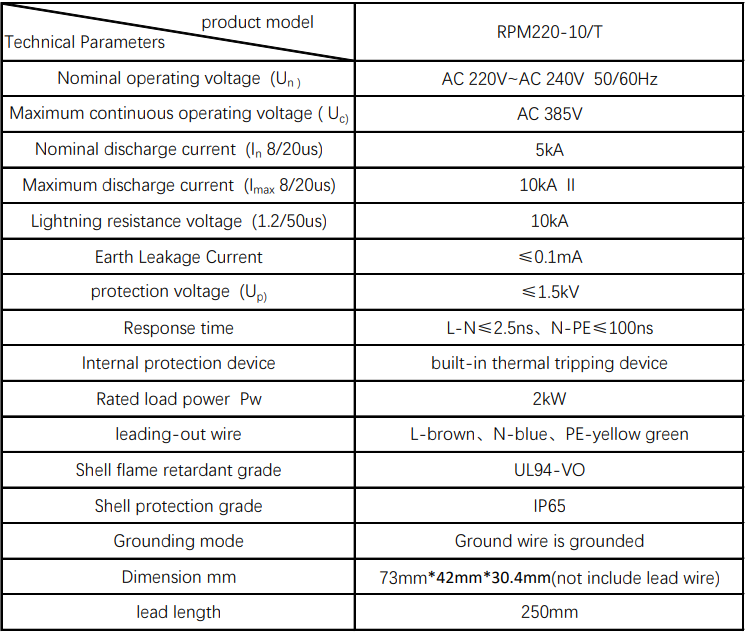

technical parameter
