RPM-40/P1+1

This product belongs to T2 single-phase AC power on-board surge protector, PCB board welding installation, power grid adaptability, safe and reliable. Can be widely used in a variety of electrical occasions, in LPZ1 to LPZ2 distribution system used as C level protection.

  1. System voltage: AC220V
  2. Maximum continuous operating voltage: 385V
  3. Maximum discharge current Imax: 40KA
  4. Protection mode: 1+1
  5. Structure type: On board
main features

The product has built-in overheat and overcurrent protection function, which can provide grade C (Class Ⅱ classification test) lightning protection for low voltage distribution system.


01. Large through-current capacity, low limit voltage, using multi-chip parallel structure according to the through-current ;


02. The protection mode and operation voltage are optional, and the protection circuit is stable;


03. Built-in over heat, over current protection, high reliability and safety;


04. Small size, used for PCB board welding and installation, saving space, easy installation;


05. Temperature control circuit break automatic trip, with failure alarm function;


06. It can be applied to AC and DC power supply system.

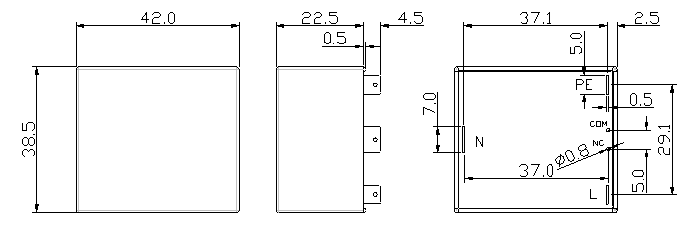

Dimension

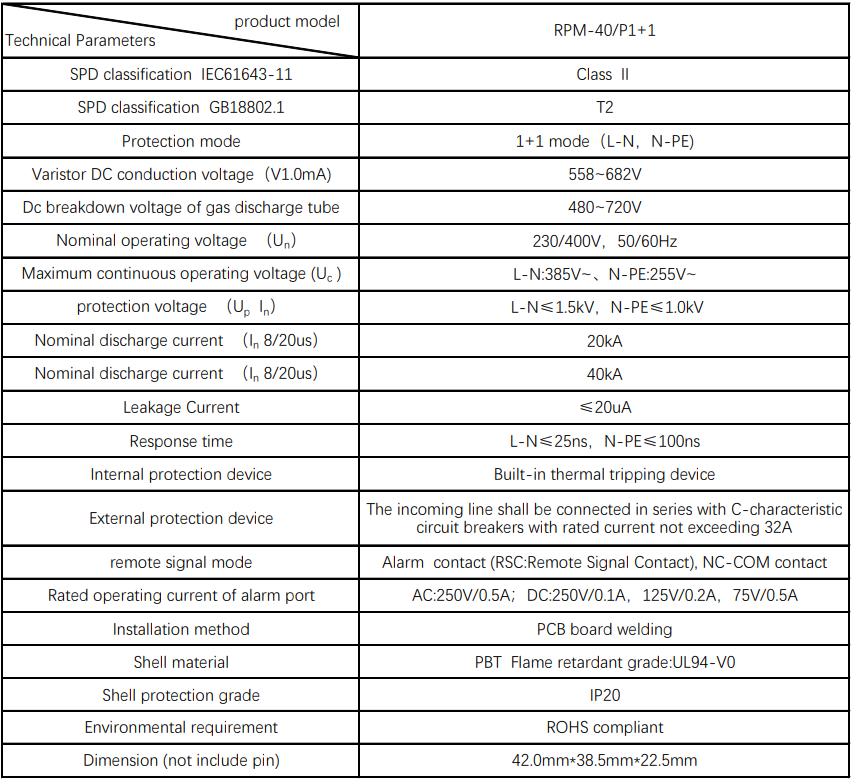

technical parameter
