RPM320-40/PCB3

This product belongs to T2 single-phase AC power on-board surge protector, PCB board welding installation, power grid adaptability, safe and reliable. Can be widely used in a variety of electrical occasions, in LPZ1 to LPZ2 distribution system used as C level protection.

  1. System voltage: AC220V
  2. Maximum continuous operating voltage Uc: 320V
  3. Maximum discharge current Imax: 40KA
  4. Protection mode: 2+1
  5. Structure type: On board
main features

The product has built-in overheat and overcurrent protection function, which can provide class C (Class Ⅱ classification test) lightning protection for low voltage distribution system.


01. Large current capacity, limited voltage low;


02. The operation voltage is optional, and the protection circuit is robust;


03. With temperature control circuit breaker and over current protection function, safe and reliable; When the product fails, it can automatically disconnect from the power grid, and completely avoid the fire caused by the product failure;


04. With failure alarm function, the alarm electrode is closed when the product function is normal; Open circuit when the product is damaged;


05. Small size, used for PCB board welding and installation, saving space, convenient installation;

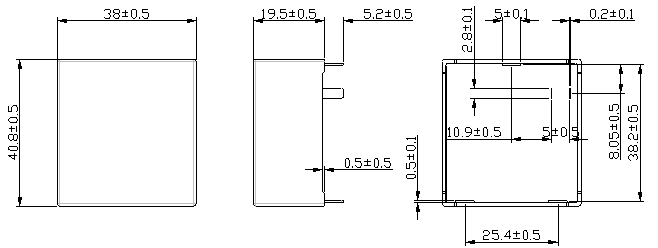

Dimension

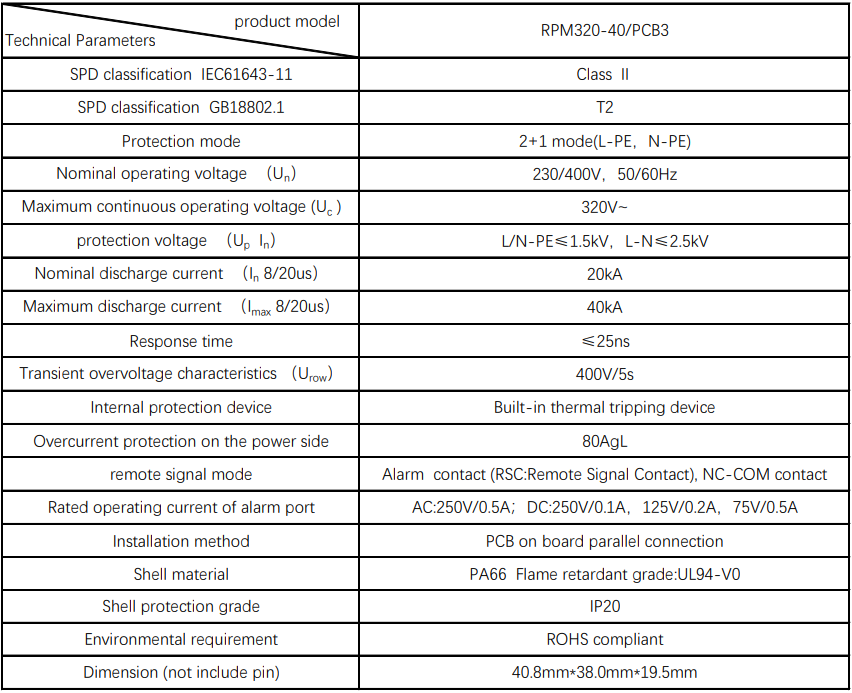

technical parameter
