RPM1260-30/3N+NPG

Class T2 three-phase power surge protector, using 3+0 mode, can be applied to IT, TN-C system power grid, anti-interference, harmonic ability is stronger. It adopts high performance lightning protection device, strong continuous current occlusion ability, strong discharge ability, high TOV tolerance ability, low residual voltage, long service life, safe and reliable.

System voltage： AC1140V
Protection grade: T2
Installation position: LPZ2
Operation temperature： -40℃—+80℃
Relative humidity： 5%—95%
Altitude： -500m—4000m
Product code： S0102156

document download

main features

The product has built-in overheat and overcurrent protection function, which can provide class C (Class Ⅱ classification test) lightning protection for low voltage distribution system.

01. Large current capacity, limited voltage low;

02. The operation voltage is appropriate, and the protection circuit is stable;

03. Built-in over heat protection, no continuous flow, high reliability and safety;

04. Integrated module structure, using 35mmDIN guide rail fixed, easy installation and maintenance;

05. With failure indication and centralized remote alarm dry contact;

06. The enclosure protection grade is IP20, flame retardant grade is UL94V-0;

07. Exquisite technology, can work in harsh environment for a long time;

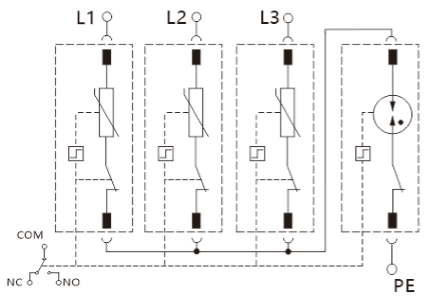

Protection principle

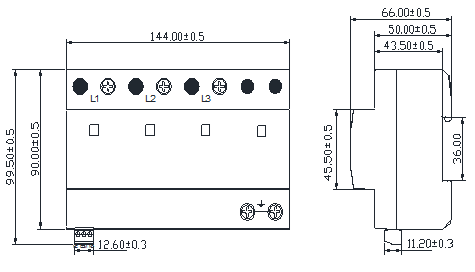

Dimension

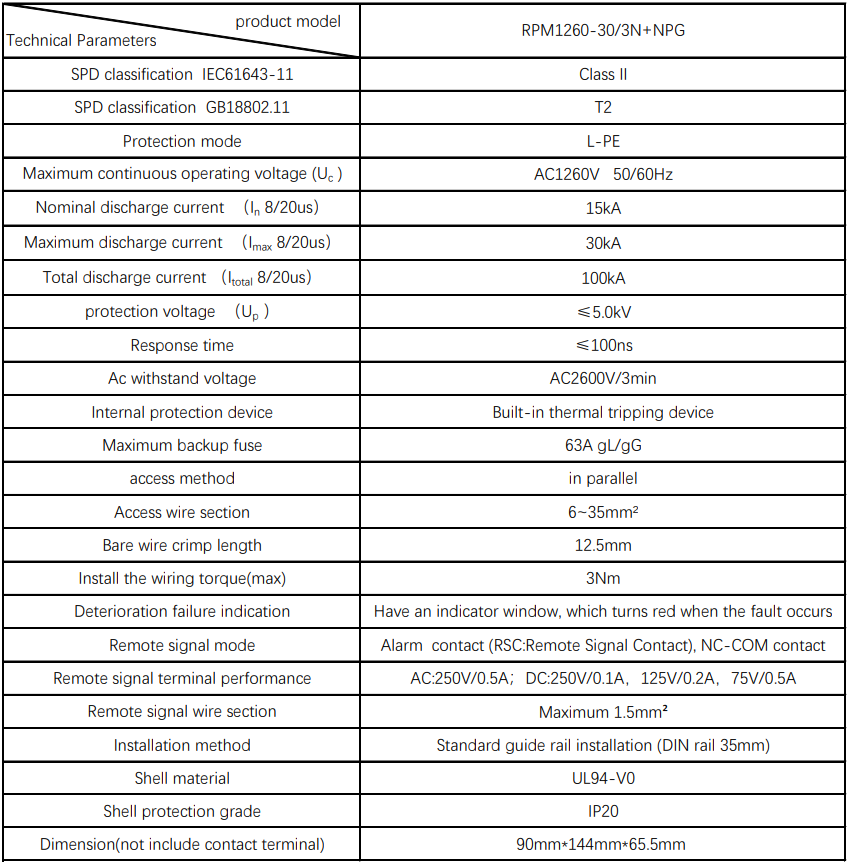

technical parameter
