RPM1400-30/3P

Class T2 three-phase power surge protector, using 3+0 mode, can be applied to IT, TN-C system power grid. It adopts high performance lightning protection device, strong continuous current occlusion ability, strong discharge ability, high TOV tolerance ability, low residual voltage, long service life, safe and reliable.

  1. System voltage: AC1140V
  2. Protection grade: T2
  3. Installation position: LPZ2
  4. Operation temperature: -40℃—+80℃
  5. Relative humidity: 5%—95%
  6. Altitude: -500m—4000m
  7. Product code: S0102158
main features

The product has built-in overheat and overcurrent protection function, which can provide class C (Class Ⅱ classification test) lightning protection for low voltage distribution system.


01. Large current capacity, limited voltage low;


02. The operation voltage is appropriate, and the protection circuit is stable;


03. Built-in over heat, over current protection, no continuous flow, high reliability and safety;


04. Modular structure, replaceable, easy to maintain;


05. With status indication and remote alarm function;


06. Exquisite technology, can work in harsh environment for a long time, using 35mmDIN guide rail fixed, easy installation, simple maintenance.

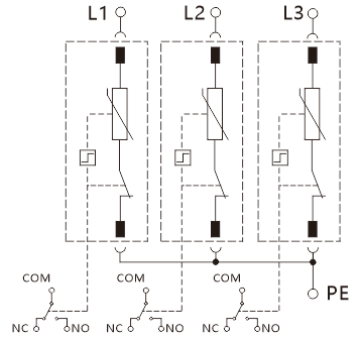

Protection principle

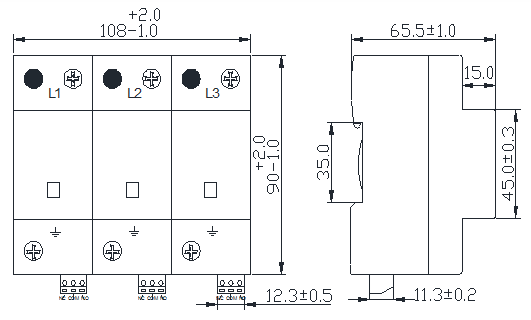

Dimension

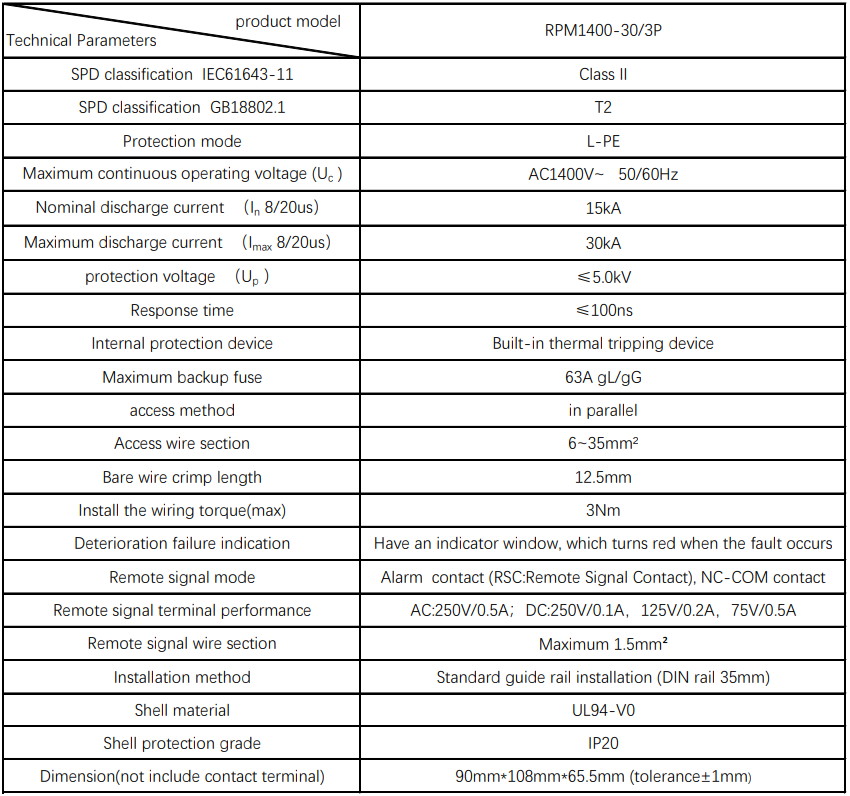

technical parameter
