RPT1200-140

Class T1+T2 power surge protector, unique aluminum alloy airtight waterproof design, can be directly installed in the stator and rotor bus. It adopts high performance lightning protection device, strong continuous current occlusion ability, strong discharge ability, high TOV tolerance ability, low residual voltage, long service life, safe and reliable.

01. Avoid thermal overload: unique high energy varistor zinc oxide crystal distribution, excellent nonlinear response characteristics, crystal gradient level distribution, large heat dissipation area, not instantaneous high temperature, unique anti-arc groove design.

02. Super short-circuit current tolerance: no need to rely on over-current circuit breaker (fuse or circuit breaker).

03. Super lightning flow ability: the use of enhanced varistor, large area single varistor to enhance the product to surge energy processing ability.

04. Less access interference and capacitance current: the single varistor design eliminates the average distribution between multiple parallel varistors and reduces the tolerance and anti-interference problem of line access, eliminating the unfavorable factors in the actual operation of the product

05. Extremely fast response time and lower residual voltage: the cylindrical design reduces the integrated impedance of the internal connection of the module, reduces the related voltage drop within the product, and improves the response time of the product to lightning and overvoltage to the greatest degree.

06 Super overload self-recovery ability: metal plate electrode to ensure lower contact resistance, so that the varistor to get better cooling, the maximum use of the effective area of the varistor.

07. Maintenance-free, long life: the strong metal shell effectively discharges the surge energy and generates heat to discharge the piezoresistor, which effectively extends the service life of the surge protector, and improves the ability of the product to deal with lightning and high energy of overvoltage; Designed life of 20 years, maintenance free.

08. Low continuous cost: the use of high quality high strength anti-oxidation metal aluminum alloy airtight waterproof design, effectively improve the use of the environment on the product life.

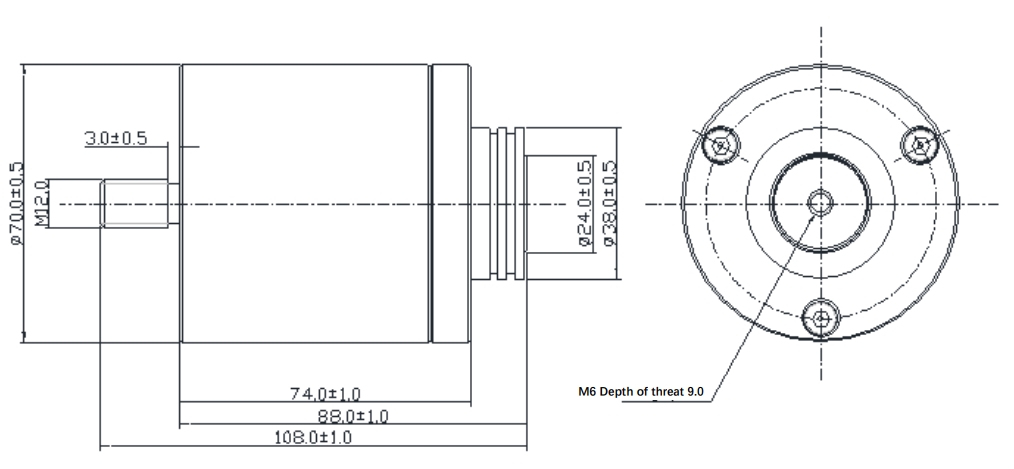

Dimension
