RPD1000-40/3P

T2 type solar system DC power surge protector, safe and reliable, strong power grid adaptability, for DC power port to provide between lines、 line and protective ground (PE) protections, used to prevent lightning induced overvoltage and ground potential counterattack damage.

System voltage： DC1000V
Maximum continuous operating voltage： 1300V
Maximum discharge current Imax: 40kA
Protection grade： T2

document download

main features

The product has built-in overheat and overcurrent protection function, which can provide T1+T2 level lightning protection for photovoltaic power supply system.

01. Specially designed for photovoltaic group series surge protection, suitable for photovoltaic grid-connected power generation system

02. Redundant design, long life, low residual voltage, high reliability protection

03. Built-in overheat protection, no continuous flow, high reliability and safety

04. The operation voltage is appropriate, and the protection circuit is stable

05. Two-color status indication, remote signal alarm

06. Pluggable module design, easy installation, easy maintenance

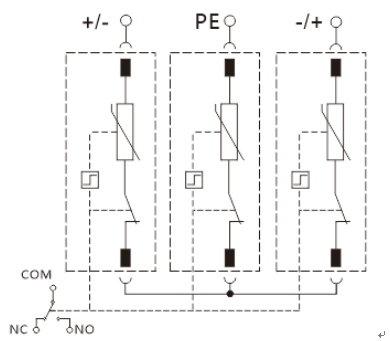

Protection Principle

Dimension

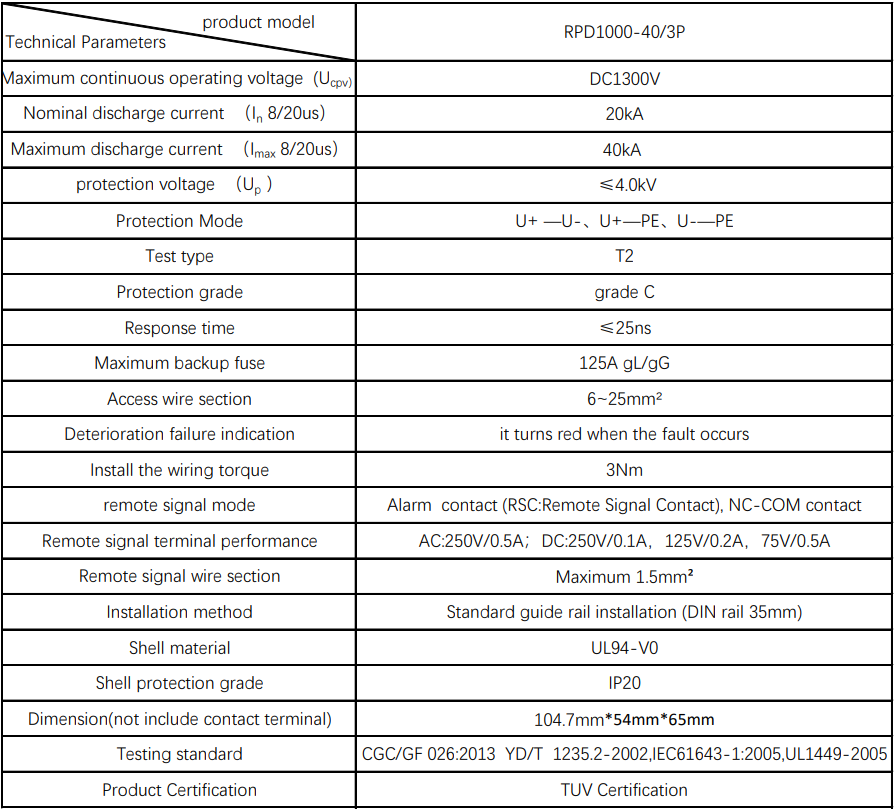

technical parameter
