RPD1500-40/3P

The DC power surge protector of T1+T2 solar system is safe and reliable, with strong power grid adaptability. It provides between lines、 line and protection ground (PE) protections for DC power ports, which is used to prevent damage caused by lightning induced overvoltage and ground potential counterattack.

System voltage： DV1250V
Maximum continuous operating voltage： 1500V
Maximum discharge current Imax: 40KA
Protection grade： T1+T2

document download

main features

The product has built-in overheat and overcurrent protection function, which can provide T1+T2 level lightning protection for photovoltaic power supply system.

01. Specially designed for photovoltaic group series surge protection, suitable for photovoltaic grid-connected power generation system

02. Redundant design, long life, low residual voltage, high reliability protection

03. Built-in overheat protection, no continuous flow, high reliability and safety

04. The operation voltage is appropriate, and the protection circuit is stable

05. Two-color status indication, remote signal alarm

06. Pluggable module design, easy installation, easy maintenance

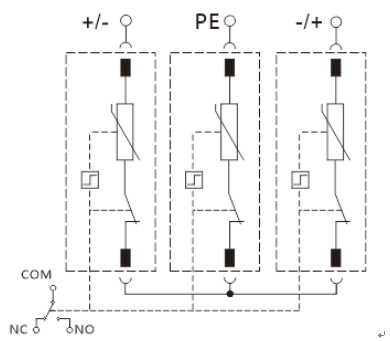

Protection Principle

Dimension

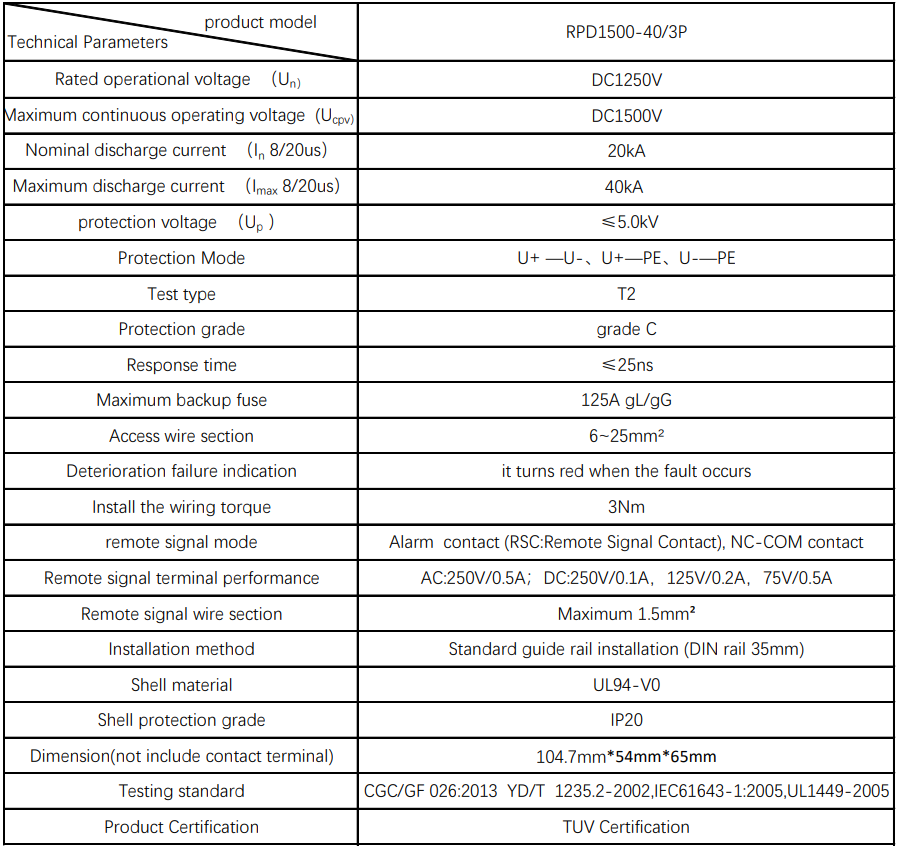

technical parameter
