RPM-80

This product belongs to T2 class AC power surge protector, integrated base, pluggable module, seismic lock design, with large flow capacity, power grid adaptability, safe and reliable. Can be widely used in various electrical occasions, in LPZ0 to LPZ1 distribution system used as B, C level protection.

System voltage： AC220/380V
Power distribution system: TT、TN-S、TN-C、IT
Maximum continuous operating voltage： 385V
Maximum discharge current Imax: 60KA
Protection mode： 1+1、2+0、3+0、3+1、4+0

document download

main features

Ac power surge protector adopts a variety of lightning protection devices combined protection mode, parallel, integrated base, pluggable module, seismic lock design, with working state indication, failure remote alarm function.

01. Parallel, multi-functional modular design, using 1+1, 2+0, 3+0, 3+1, 4+0 mode;

02. Adopt high performance lightning protection devices, strong continuous current blocking ability, no continuous current generation;

03. Safe and reliable, fully sealed design, no arcing phenomenon;

04. Low voltage protection level, large flow;

05. Exquisite technology, can work in harsh environment for a long time, convenient installation, simple maintenance;

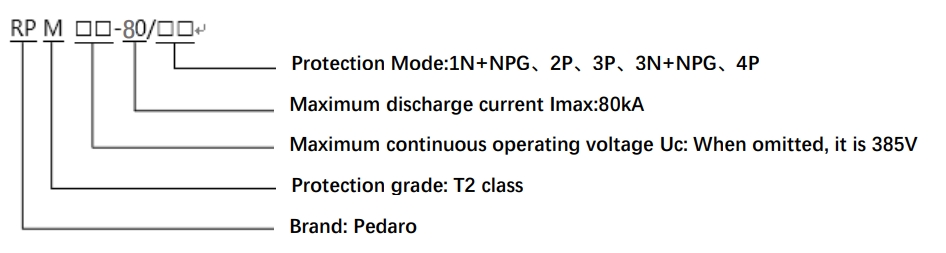

Naming rule


Dimension

RPM-80/1N+NPG（RPM-80/2P） RPM-80/3N+NPG（RPM-80/4P）

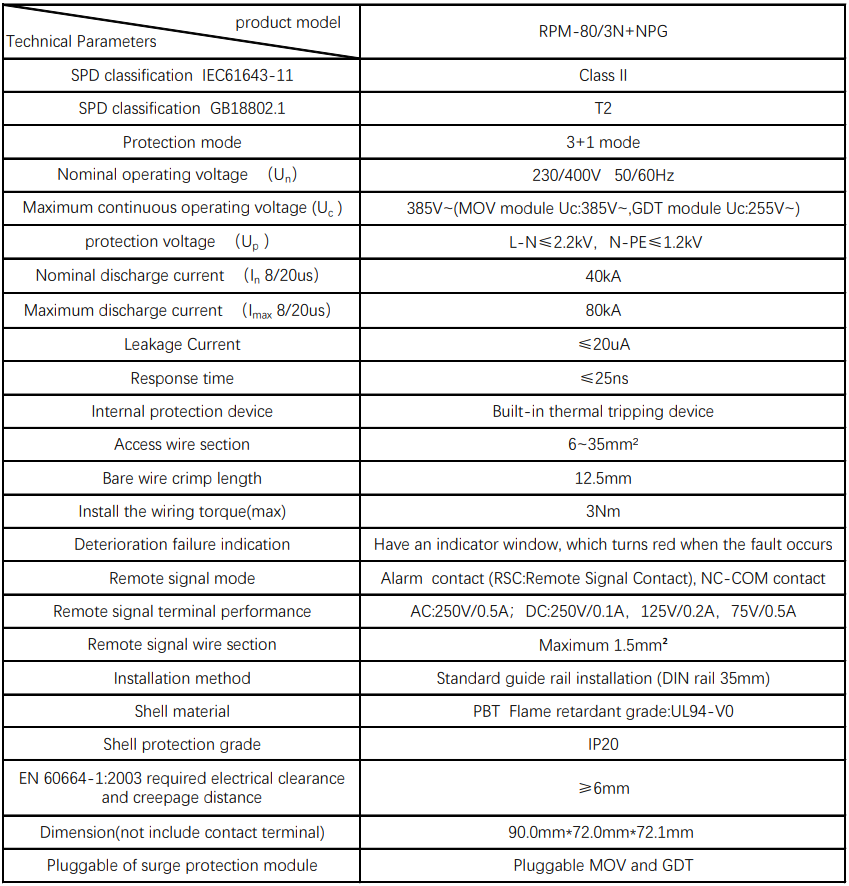

technical parameter
