RPD12-40/2P

This product belongs to T2 class DC power surge protector, integrated base, pluggable module, seismic lock design. It can be widely used in the distribution system of LPZ2 to LPZ3 area as D level protection.

  1. System voltage: DC12V
  2. Maximum continuous operating voltage: 18V
  3. Maximum discharge current Imax: 40KA
main features

Dc power surge protector adopts a variety of lightning protection devices combined protection mode, parallel, integrated base, pluggable module, seismic lock design, with working state indication, failure remote alarm function.


01. Large current capacity, limited voltage low;


02. The operation voltage is appropriate, and the protection circuit is stable;


03. Built-in over heat, over current protection, no continuous flow, high reliability and safety;


04. Pluggable module structure, the module is anti-misinserted, replaceable, easy to maintain;


05. With status indication and remote alarm function;


06. Exquisite technology, can work in harsh environment for a long time, using 35mm DIN guide rail fixed, easy installation, simple maintenance.

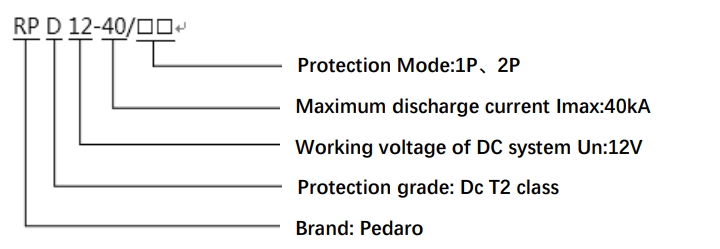

Naming rule

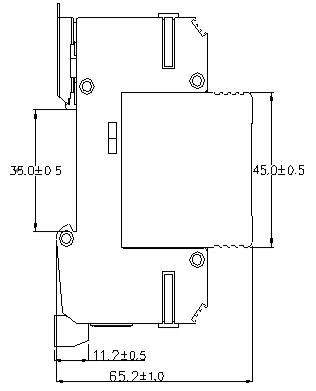

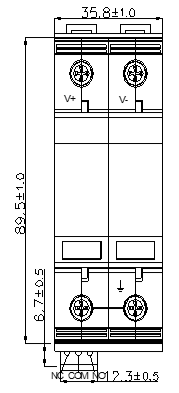

Dimension














                                    RPD12-40/2P

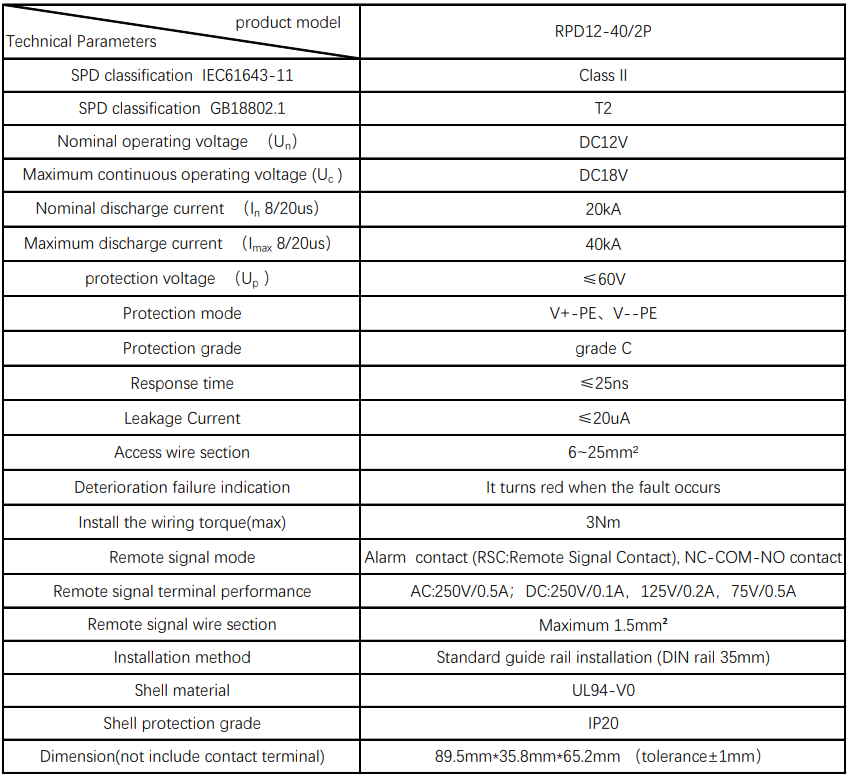

technical parameter
