RPM-40-18

This product belongs to T2 class AC power surge protector, integrated base, ultra-thin pluggable module, seismic lock design, with large flow capacity, power grid adaptability, safe and reliable. Can be widely used in various electrical occasions, in LPZ0 to LPZ1 distribution system used as C, D level protection.

  1. System voltage: AC220/380V
  2. Power distribution system: TT、TN-S、TN-C、IT
  3. Maximum continuous operating voltage: 385V
  4. Maximum discharge current Imax: 40KA
  5. Protection mode: 1+1、2+0、3+0、3+1、4+0
  6. Number of modules: 1 piece,width 18mm
main features

Ac power surge protector adopts a variety of lightning protection devices combined protection mode, parallel, integrated base, super model pluggable module, seismic lock design, with working status indication, failure remote alarm function.


01. Large current capacity, limited voltage low;


02. The operation voltage is appropriate, and the protection circuit is stable;


03. Built-in over heat, over current protection, no continuous flow, high reliability and safety;


04. Small volume design, width is only 18mm, saving installation space;


05. Integrated base, pluggable module structure, anti-misinsert module, replaceable, easy to maintain;


06. The new locking device in the case of large current impact and strong vibration, can ensure that the plug is stable, not loose;


07. With status indicator and remote alarm function;


08. Exquisite technology, can work in harsh environment for a long time, using 35mmDIN guide rail fixed, easy installation, simple maintenance.

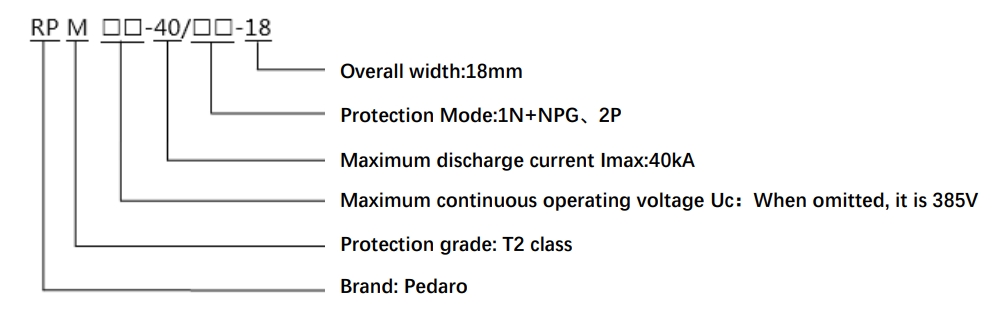

Naming rule

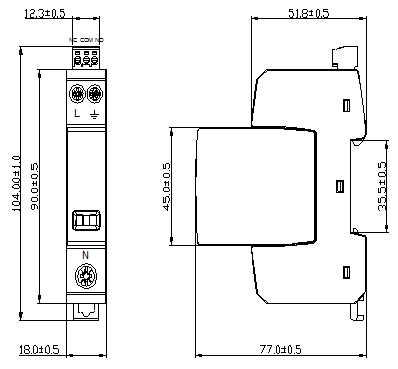

Dimension


                         RPM-40/1N+NPG-18(RPM-40/2P-18)

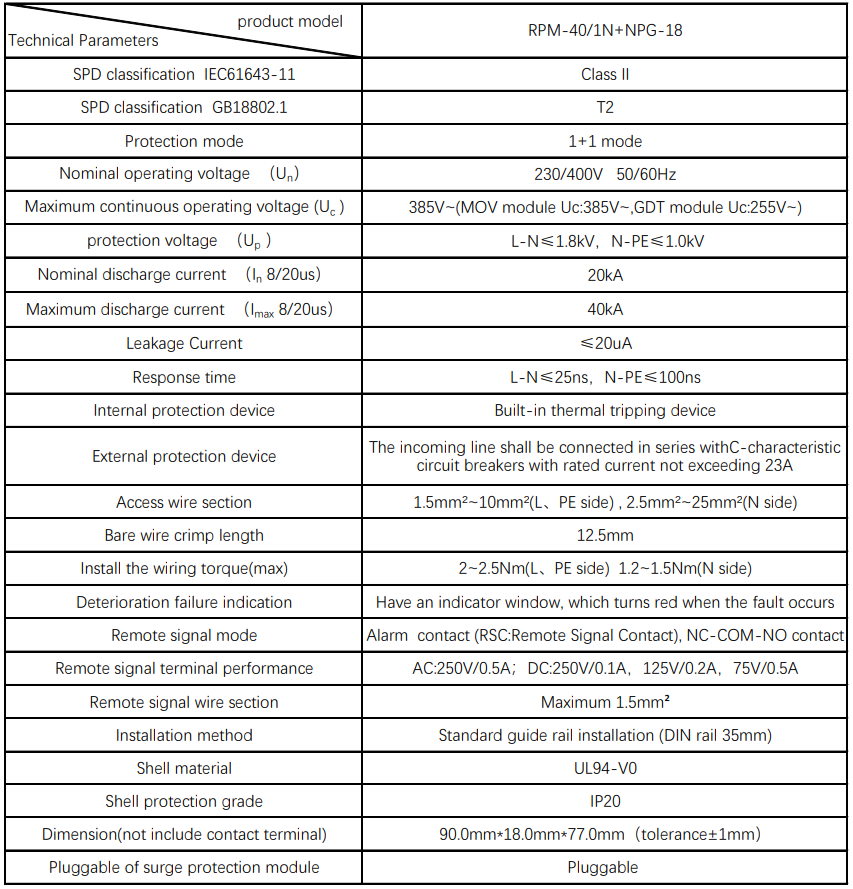

technical parameter
