RPM-100

This product belongs to class T2 AC power surge protector, with large flow capacity, strong power grid adaptability, safe and reliable. Can be widely used in a variety of electrical occasions, in LPZ0 to LPZ1 distribution system used as class B protection.

System voltage： AC220/380V
Power distribution system: TT、TN-S、TN-C、IT
Maximum continuous operating voltage： 385V
Maximum discharge current Imax: 100KA
Protection mode： 1+1、2+0、3+0、3+1、4+0

document download

main features

Ac power surge protector adopts a variety of lightning protection devices combined protection mode, parallel, multi-functional integrated design, with working status indication, failure remote alarm function.

01. Parallel, multi-functional modular design, using 1+1, 2+0, 3+0, 3+1, 4+0 mode;

02. Adopt high performance lightning protection devices, strong continuous current blocking ability, no continuous current generation;

03. Safe and reliable, fully sealed design, no arcing phenomenon;

04. Low voltage protection level, large flow;

05. Exquisite technology, can work in harsh environment for a long time, convenient installation, simple maintenance;

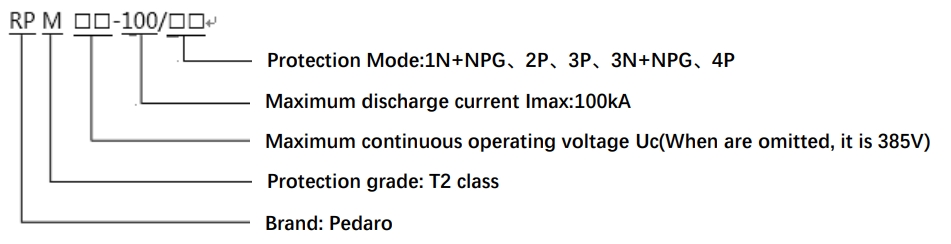

Naming rule


Dimension

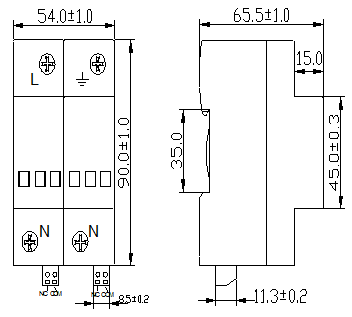

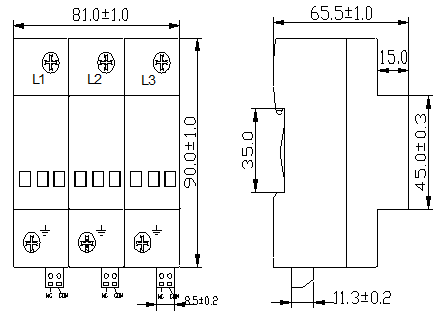

RPM-100/1N+NPG（RPM-100/2P） RPM-100/3P

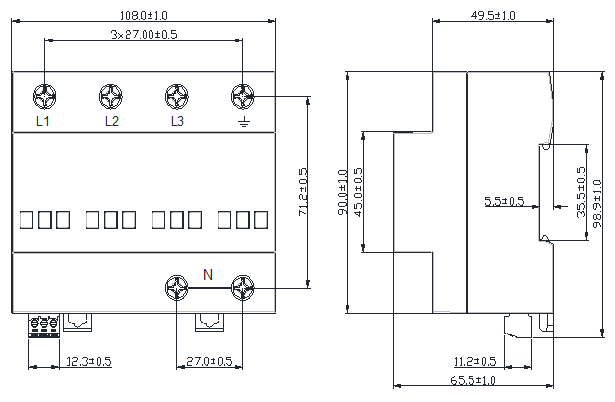

RPM-100/3N+NPG（RPM-100/4P）

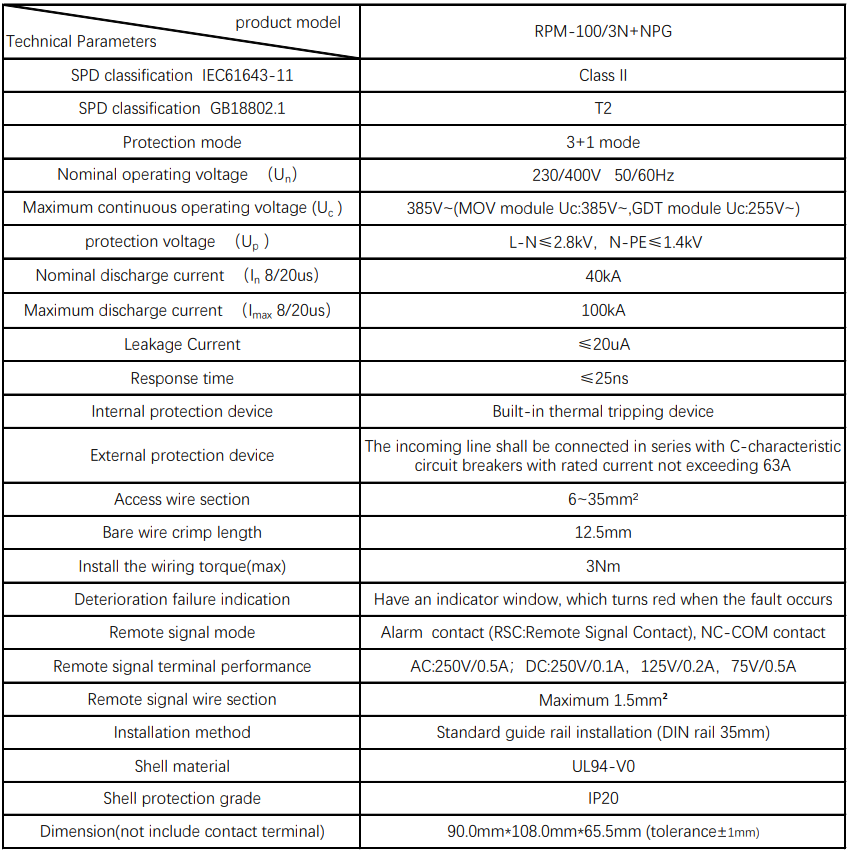

technical parameter
