RPM-80/B+C-1U

This product belongs to class T2 1U panel plug and unplug anti-off type AC power surge protector, with large high-pass flow capacity, low residual voltage, strong power grid adaptability, safe and reliable, suitable for the implementation of panel pluggable, 1U height chassis installation. Can be widely used in various electrical occasions, in LPZ0 to LPZ1 distribution system used as B+C class protection.

System voltage： AC220/380V
Power distribution system: TT、TN-S、TN-C
Maximum continuous operating voltage： 385V
Maximum discharge current Imax: 120KA
Protection mode： B+C
Installation height: 1U height

document download

main features

1U panel plug and remove anti-off type AC power surge protector adopts a combination of lightning protection devices protection mode, suitable for panel plug and remove, 1U height chassis installation site with working status indication, failure remote alarm function.

01. It is suitable for lightning and overvoltage protection of modular plug frame power system;

02. Novel and compact structure, small installation space (single-phase width 38mm, three-phase width 76mm)), meet the installation height requirements of 1U chassis of plug frame power supply;

03. Large current capacity, limited voltage low;

04. The operation voltage is appropriate, and the protection circuit is stable;

05. Built-in over heat, over current protection, no continuous flow, high reliability and safety;

06. The new locking device in the case of large current impact and strong vibration, can ensure that the plug is stable, not loose;

07. Pluggable module structure, the module is anti-misinserted, replaceable, easy to maintain;

08. With status indicator and remote alarm function;

09. Adopt screw (M6) crimping mode, wiring capacity 6 ~ 35mm²;

10. Adopt 4-M3*8 screw for easy installation.

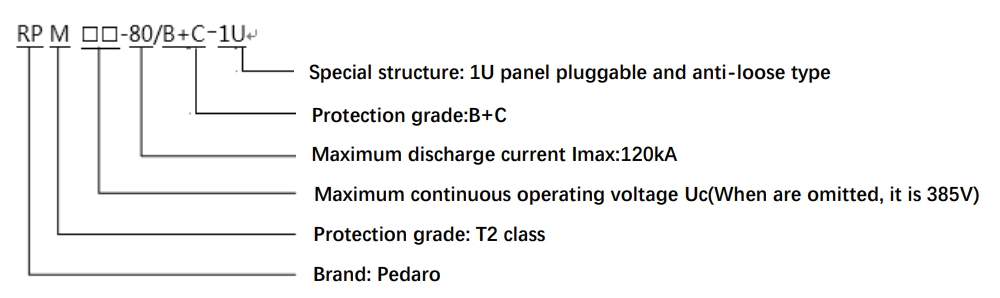

Naming rule

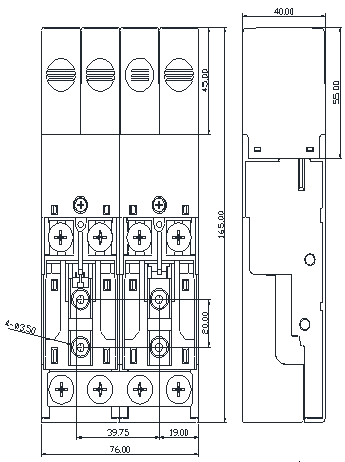

Dimension

RPM-80/B+C-1U
